Tail Pipe Trim, Removing And Installing: Installing

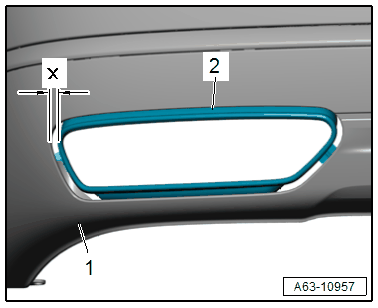

Fig 1: Identifying Tail Pipe

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Check the trim distance for the tail pipe -2- on the bumper cover -1- :

• Dimension -x- = uniform gap.

-- Install the rear bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .
