Tail Pipe Trim Mount, Removing And Installing: Removing

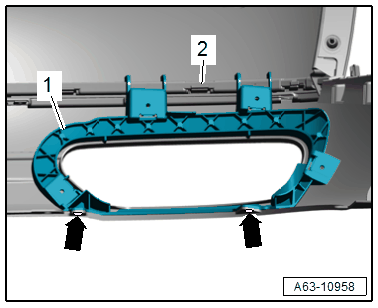

Fig 1: Tail Pipe Trim Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the tail pipe trim, refer to TAIL PIPE TRIM, REMOVING AND INSTALLING .

-- Drill out the blind rivets -arrows- and remove the rivet shaft.

-- Remove the mount -1- from the bumper cover -2-.
