Side Trim Strip, Removing And Installing, Vehicles From My 2014: Removing

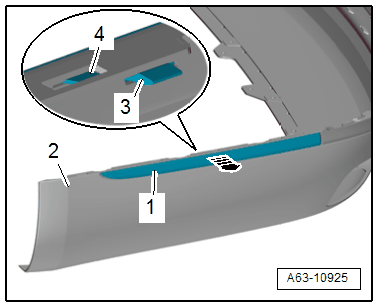

Fig 1: Identifying Side Trim Strip (Vehicles From My 2014)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the lower section of the bumper cover, refer to BUMPER COVER LOWER SECTION, REMOVING AND INSTALLING, VEHICLES FROM MY 2014 .

-- Release the catch -4- and carefully remove the trim strip -1- from the bumper cover lower section -2- -arrow-.

• At the same time the guides -3- are removed from the mounts.
