Bumper Cover Lower Section, Removing And Installing, Vehicles Through My 2013: Removing

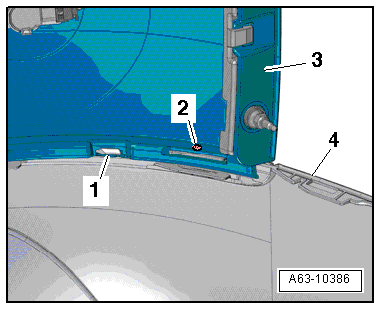

Fig 1: Bumper Cover Lower Section (Vehicles Through My 2013)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolt -2- (if equipped).

-- Disconnect any electrical harness connectors or components (if equipped).

-- Release the tabs -1- and remove the lower part of the bumper cover -4- from the bumper cover -3-.
