Bumper Cover Lower Section Trim Strip, Removing And Installing, AUDI S8: Removing

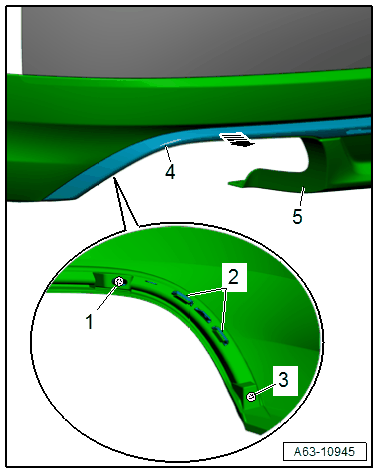

Fig 1: Identifying Bumper Cover Lower Section Trim Strip (Audi 8)

Courtesy of AUDI OF AMERICA, LLC

-- Remove the rear bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -1 and 3-.

-- Release the retainers -2- and press the trim molding -4- off the bumper cover lower section -5- using the Wedge Set T10383 -arrow-.
