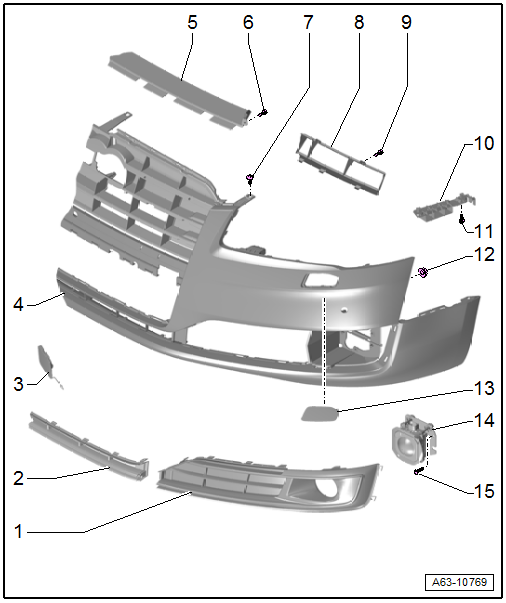

Overview - Bumper Cover, Version 2
- Side Air Intake Grille
- Removing and installing, refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, VERSION 2 .
- Center Air Intake Grille
- Removing and installing, refer to CENTER AIR INTAKE GRILLE, REMOVING AND INSTALLING .
- Cover
- For the towing eye
- Bumper Cover
- Removing and installing, refer to BUMPER COVER, REMOVING AND INSTALLING .
- Cover
- For impact member
- Bolt
- 1.5 Nm
- Bolt
- 3 Nm
- Quantity: 3
- Air Ducts
- There are different versions
- Bolt
- 1.5 Nm
- Quantity: 4
- Mount
- For the bumper cover
- Removing and installing, refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
- Bolt
- 1.5 Nm
- Quantity: 2
- Nut
- 4 Nm
- Quantity: 2
- Spray Nozzle Cover
- For the headlamp washer system
- Removing and installing, refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLE COVER, REMOVING AND INSTALLING .
- Distance Regulation Control Module
- Removing and Installing, refer to ADAPTIVE CRUISE CONTROL .
- Bolt
- Tightening specification, refer to ADAPTIVE CRUISE CONTROL .
