Overview - Bumper Cover, AUDI S8 Through My 2013

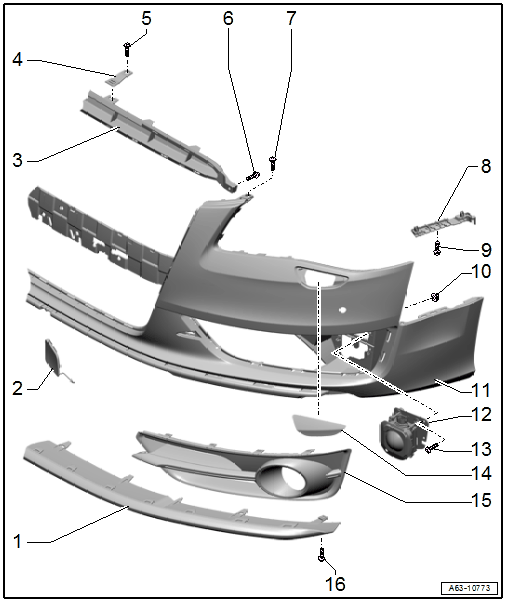

Fig 1: Overview - Bumper Cover, Audi S8 Through My 2013

Courtesy of AUDI OF AMERICA, LLC

1. Spoiler Lower Section
   • Removing and installing, refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, AUDI S8 THROUGH MY 2013 .
2. Cover
   • For the towing eye
3. Reinforcement Brace
4. Bracket
   • For connecting the bumper cover/lock carrier
5. Bolt
   • 3 Nm
6. Bolt
   • 3 Nm
7. Bolt
   • 3 Nm
   • Quantity: 2
8. Mount
   • For the bumper cover
   • Removing and installing, refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
9. Bolt
   • 1.5 Nm
   • Quantity: 2
10. Nut
    • 4 Nm
    • Quantity: 2
11. Bumper Cover
    • Removing and installing, refer to BUMPER COVER, REMOVING AND INSTALLING .
12. Distance Regulation Control Module
    • Removing and Installing, refer to ADAPTIVE CRUISE CONTROL .
13. Bolt
    • Tightening specification, refer toADAPTIVE CRUISE CONTROL .
14. Spray Nozzle Cover
    • For the headlamp washer system
    • Removing and installing, refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLE COVER, REMOVING AND INSTALLING .
15. Air Intake Grille
    • Removing and installing, refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, VERSION 1 .
16. Bolt
    • 3 Nm
