Overview - Bumper Cover, AUDI S8 From My 2014

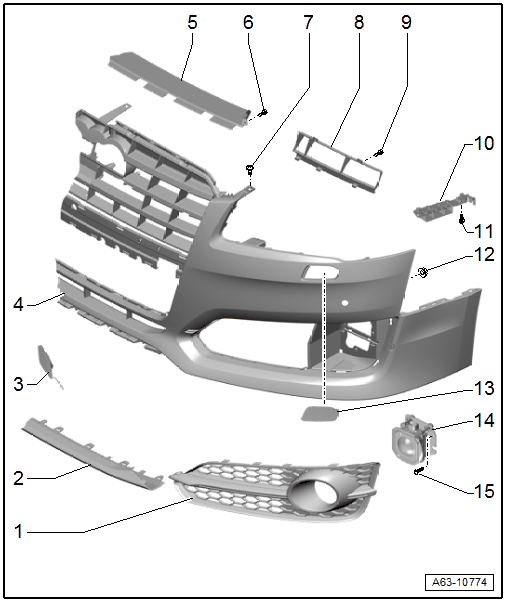

Fig 1: Overview - Bumper Cover, Audi S8 From My 2014

Courtesy of AUDI OF AMERICA, LLC

1. Spoiler Lower Section
   • Removing and installing, refer to SPOILER LOWER SECTION, REMOVING AND INSTALLING, AUDI S8 FROM MY 2014 .
2. Cover
   • For the towing eye
3. Bumper Cover
   • Removing and installing, refer to BUMPER COVER, REMOVING AND INSTALLING .
4. Cover
   • For impact member
5. Bolt
   • 1.5 Nm
6. Bolt
   • 3 Nm
   • Quantity: 3
7. Air Ducts
8. Bolt
   • 1.5 Nm
   • Quantity: 4
9. Mount
   • For the bumper cover
   • Removing and installing, refer to BUMPER COVER MOUNT, REMOVING AND INSTALLING .
10. Bolt
    • 1.5 Nm
    • Quantity: 2
11. Nut
    • 4 Nm
    • Quantity: 2
12. Spray Nozzle Cover
    • For the headlamp washer system
    • Removing and installing, refer to HEADLAMP WASHER SYSTEM SPRAY NOZZLE COVER, REMOVING AND INSTALLING .
13. Distance Regulation Control Module
    • Removing and Installing, refer to ADAPTIVE CRUISE CONTROL .
14. Bolt
    • Tightening specification, refer to ADAPTIVE CRUISE CONTROL .
15. Air Intake Grille
    • Removing and installing, refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, VERSION 2 .
