Impact Member, Removing And Installing: Removing

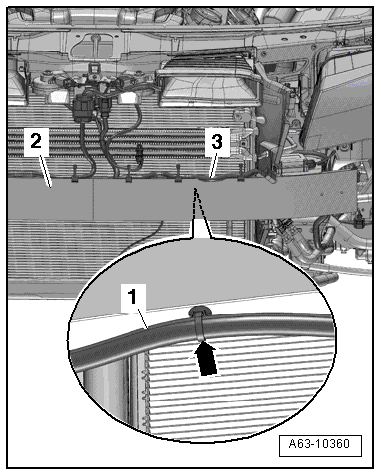

Fig 1: Identifying Windshield Washer Fluid Hose And Wiring Harness

Courtesy of AUDI OF AMERICA, LLC

-- Remove the molded foam part, refer to MOLDED FOAM PIECE, REMOVING AND INSTALLING .

-- Cut the cable tie -arrow- and free up the windshield washer fluid hose -1- for the spray nozzle and the wiring harness -3- on the impact member -2-.

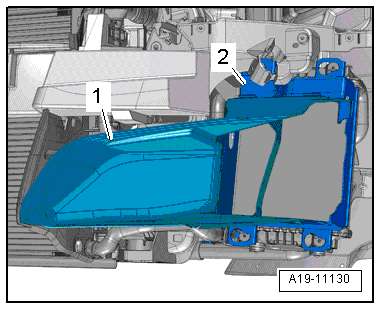

-- For vehicles with a side auxiliary cooler, unclip the air guide -1- from the air guide -2- and remove.

Fig 2: Remove Left Radiator Air Guide

Courtesy of AUDI OF AMERICA, LLC

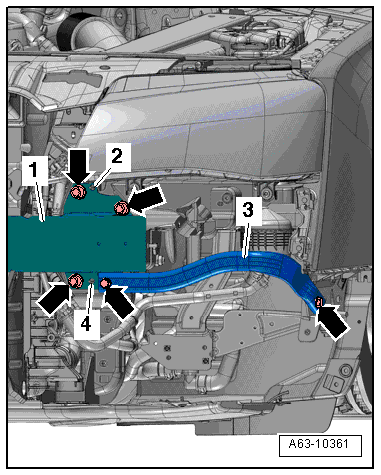

-- Remove the lock washers -2 and 4-.

Fig 3: Remove Lock Washers

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness from the right connecting brace.

-- Remove the bolts -arrows-.

-- Remove the connecting brace -3- and the impact member -1-.
