Molded Foam Piece, Removing And Installing: Removing

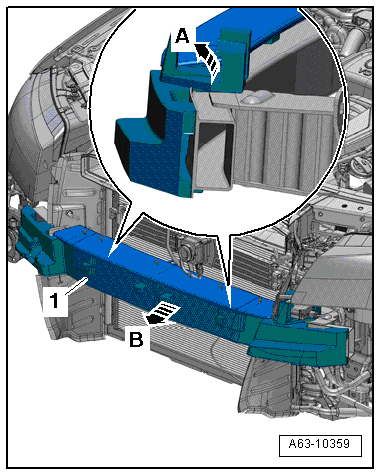

Fig 1: Molded Foam Piece

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

-- If equipped on vehicles through 2013 remove the Garage Door Opener Control Module -J530-, refer to CONTROLS .

-- If equipped, for vehicles from 2014 push the Garage Door Opener Control Module -J530- mount rearward from the guide.

-- Detach the molded foam part -1- from the impact member -arrow A- and remove it toward the front -arrow B-.
