Center Air Intake Grille, Removing And Installing: Removing

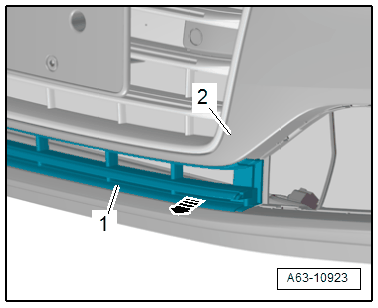

Fig 1: Center Air Intake Grille

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air intake grille, refer to AIR INTAKE GRILLE, REMOVING AND INSTALLING, VERSION 2 .

-- Remove the center air intake grille -1- from the bumper cover -2- -arrow-.
