Bumper Cover Spacer, Removing And Installing, Vehicles From My 2014: Removing

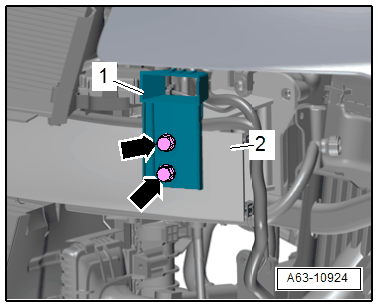

Fig 1: Bumper Cover Spacer

Courtesy of AUDI OF AMERICA, LLC

-- Remove the molded foam part, refer to MOLDED FOAM PIECE, REMOVING AND INSTALLING .

-- Remove the bolts -arrows-.

-- Remove the spacer -1- from the impact member -2-.
