Bumper Cover Mount, Removing And Installing: Removing

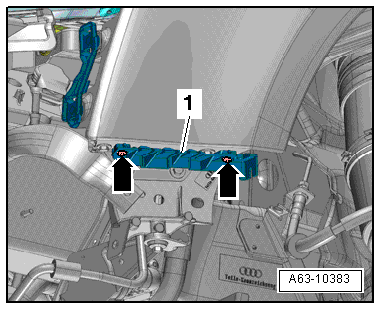

Fig 1: Bumper Cover Mount

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front bumper cover, refer to BUMPER COVER, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and the front bumper cover mount -1-.
