Bumper Cover End Plate, Removing And Installing, AUDI S8: Removing

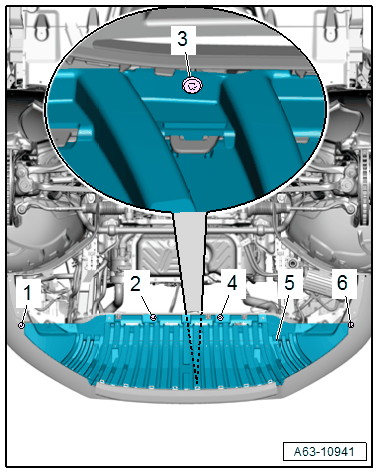

Fig 1: Identifying Bumper Cover End Plate

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front noise insulation, refer to FRONT NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the wheel spoiler, refer to OUTER FRONT OUTER WHEEL SPOILER, REMOVING AND INSTALLING .

-- Loosen the quick release bolts -2 and 4-.

-- Remove the bolts -1 and 6-.

-- Push the end panel -5- slightly downward -arrow- and remove the bolts -3-.

-- With a screwdriver -4- push the catch -2- carefully inward and at the same time remove the end panel -3- from the spoiler lower section -1- -arrow-.

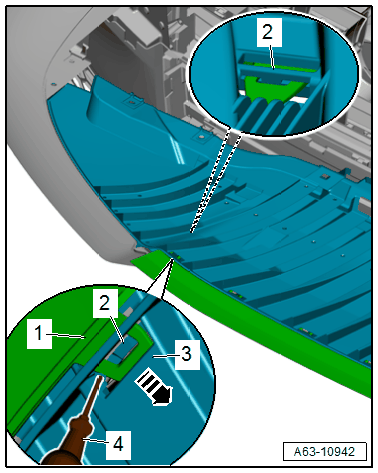

Fig 2: Remove End Panel -3- From Spoiler Lower Section

Courtesy of AUDI OF AMERICA, LLC

-- Remove the end panel in the direction of travel to the rear.
