Bumper Cover End Plate, Removing And Installing, AUDI A8: Removing

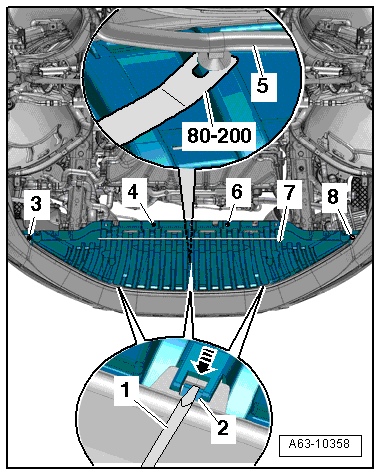

Fig 1: Identifying Bumper Cover End Plate

Courtesy of AUDI OF AMERICA, LLC

-- Remove the front noise insulation, refer to FRONT NOISE INSULATION, REMOVING AND INSTALLING .

-- Open the quick releases -4- and -6-.

-- Remove the bolts -3- and -8-.

-- Push the end panel -7- all the way forward -arrow- and unlock the tab -2- with a screwdriver -1- at the same time, as shown in the figure.

-- Remove the end panel in the direction of travel to the rear.

-- If equipped free up the wiring harness -5- using the Pry Lever 80 - 200.
