Air Intake Grille, Removing And Installing, Version 1: Removing

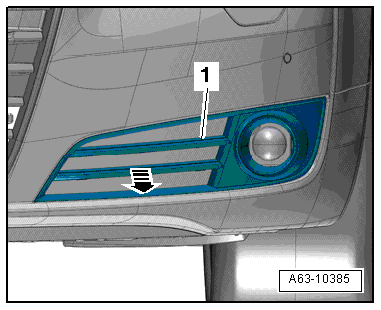

Fig 1: Air Intake Grille (Version 1)

GWWA63-10385

Courtesy of AUDI OF AMERICA, LLC

-- Remove the air intake grille -1- from the bumper cover -arrow-.
