Overview - Trailer Hitch Socket And Towing Recognition Control Module

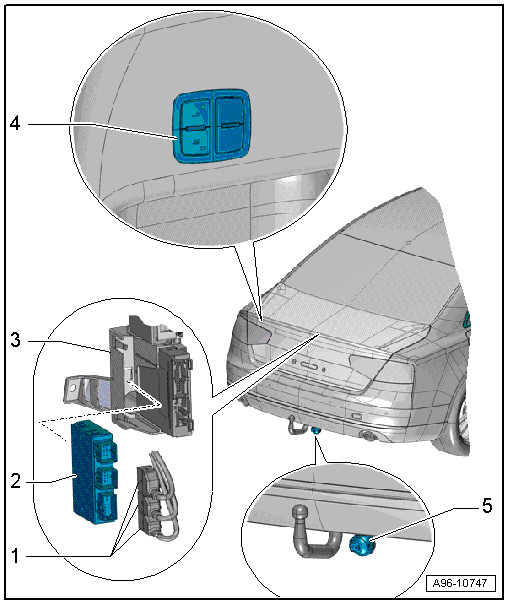

Fig 1: Overview Of Trailer Hitch Socket And Towing Recognition Control Module

Courtesy of AUDI OF AMERICA, LLC

1. Connectors
2. Towing Recognition Control Module -J345-
   • Various installed locations
   • Removing and installing, refer to TOWING RECOGNITION CONTROL MODULE -J345-, REMOVING AND INSTALLING .
3. Bracket
   • For the Towing Recognition Control Module -J345-
4. Power Pivoting Trailer Hitch Button -E474-
   • With Trailer Hitch Extending Indicator Lamp -K211- and Trailer Hitch Retracting Indicator Lamp -K212-
   • Removing and installing, refer to Power Pivoting Trailer Hitch Button -E474-, REMOVING AND INSTALLING .
5. Trailer Socket -U10-
   • Removing and Installing. Refer to TRAILER HITCH .
   • For the connector assignment. Refer to TRAILER HITCH .
