Overview - Luggage Compartment Controls Component Location

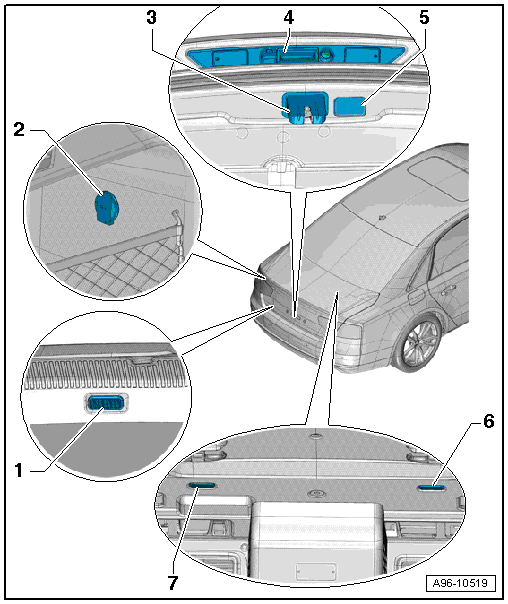

Fig 1: Overview Of Luggage Compartment Controls Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Luggage Compartment Lamp
   • Inside the rear lid end piece trim panel
2. 12 V Socket
3. Rear Lid Contact Switch
4. Rear Lid Lock Cylinder Unlock Button -F248-
   • Removing and installing, refer to REAR LID LOCK CYLINDER UNLOCK BUTTON -F248-, REMOVING AND INSTALLING .
5. Rear Lid Lock Button in Luggage Compartment -E406-
   • Versions with Locking Mechanism Button in the Rear Lid -E806-.
   • Removing and installing, refer to REAR LID LOCK BUTTON IN LUGGAGE COMPARTMENT -E406-, REMOVING AND INSTALLING .
6. Right Luggage Compartment Light
   • Inside the top of the luggage compartment trim panel
7. Left Luggage Compartment Lamp
   • Inside the top of the luggage compartment trim panel
