Overview - Instrument Panel Controls Component Location

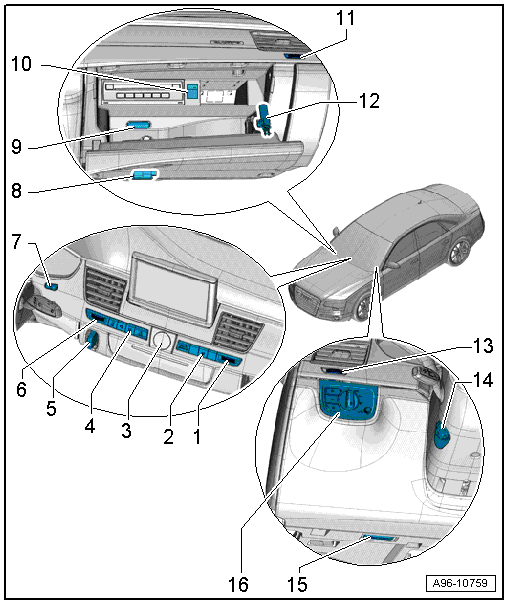

Fig 1: Overview Of Instrument Panel Controls Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Center Instrument Panel Vent Illumination Bulb Right
2. Front Center Console Control Head -E461- right
   • with Front Passenger Airbag -Disabled- Indicator Lamp -K145-, Parking Aid Button -E266-, and Display Unit Button -E506-
   • Removing and installing, refer to RIGHT FRONT CENTER CONSOLE CONTROL HEAD -E461- WITH -K145-, -E266-, -E506- AND -E581-, REMOVING AND INSTALLING .
3. Analog Clock -Y-
4. Front Center Console Control Head -E461- left
   • With Start/Stop Mode Button -E693-, Electrical Drive Button -E656-, Front Display Open/Close Button -E462-, Emergency Flasher Button -E229-, ASR/ESP Button -E256-, Rear Window Shade Switch -E149-
   • Removing and installing, refer to LEFT FRONT CENTER CONSOLE CONTROL HEAD -E461- WITH -E693-, -E656-, -E462-, -E229-, -E256- AND -E149-, REMOVING AND INSTALLING .
5. Electronic Ignition Switch/Induction Coil
   • Overview, refer to OVERVIEW - STEERING COLUMN SWITCH MODULE .
6. Center Instrument Panel Vent Illumination Bulb Left
7. Instrument Cluster Operation Button -E493-
   • Removing and installing, refer to INSTRUMENT CLUSTER OPERATION BUTTON -E493-, REMOVING AND INSTALLING .
8. Right Front Footwell Illumination Bulb
9. Glove Compartment Lamp
10. Valet Parking Lock Button -E536-
    • Removing and installing, refer to VALET PARKING LOCK BUTTON -E536-, REMOVING AND INSTALLING .
11. Right Instrument Panel Vent Illumination Bulb
12. Glove Compartment Lamp Switch -E26-
    • Removing and installing, refer to GLOVE COMPARTMENT LAMP SWITCH -E26-, REMOVING AND INSTALLING .
13. Left Instrument Panel Vent Illumination Bulb
14. Steering Column Adjustment Switch -E167-
    • With Steering Wheel Heating Button -E522-
    • Removing and installing, refer to STEERING COLUMN ADJUSTMENT SWITCH -E167- AND STEERING WHEEL HEATING BUTTON -E522-, REMOVING AND INSTALLING .
15. Left Front Footwell Illumination
16. Light Switch -E1-
    • With Instrument Panel and Switch Illumination Dimmer Switch -E20-
    • With Rear Fog Lamp Button -E314-, Fog Lamp Button -E315-, and Night Vision System Button -E680-
    • Removing and installing, refer to LIGHT SWITCH -E1-, REMOVING AND INSTALLING .

Fig 2: Steering Column Adjustment Switch -E167- /Steering Wheel Heating Button -E522-

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the screws -arrows- to 1.5 Nm.
