Engine Cover Temperature Sensor -G765-, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .

WARNING:

Fire hazards and risk of damage for a faulty engine cover.

The engine cover must be always be installed before the hood is closed.
The engine may neither be started nor driven without an engine cover.

Engine Codes CEUA/CTGA:

-- Loosen the clamps -arrows- and remove the air guide pipe.

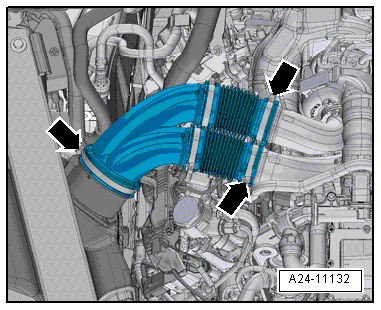

Fig 1: Identifying Air Guide Pipe And Clamps

Courtesy of AUDI OF AMERICA, LLC

Continuation for All Vehicles:

-- Disconnect the connector -1-.

-- Remove the bolt -2- and then remove the Engine Cover Temperature Sensor -G765-.

Fig 2: Identifying Engine Cover Temperature Sensor -G765-

Courtesy of AUDI OF AMERICA, LLC
