Charge Air Cooler, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Follow all the rules of cleanliness, refer to CLEAN WORKING CONDITIONS .
-- Remove the engine cover, refer to ENGINE COVER, REMOVING AND INSTALLING .
WARNING:
Fire hazards and risk of damage for a faulty engine cover.
- The engine cover must be always be installed before the hood is closed.
- The engine may neither be started nor driven without an engine cover.
NOTE:
Use a cloth to catch any leaking coolant.

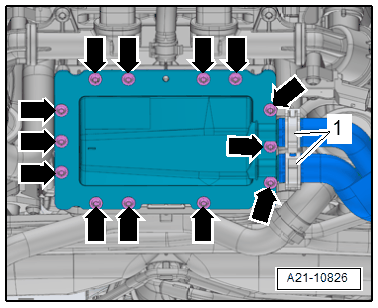

-- Loosen the hose clamps -1-, then clamp off the coolant hoses with the Hose Clamp - up to 25 mm 3094 and remove them.
-- Remove the bolts -arrows- and then remove the charge air cooler from the charge air cooler housing.
