Charge Air Cooler Housing, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Audi S8, 2015 Audi A8 Quattro, 2014 Audi S8, 2014 Audi A8 Quattro, and 2013 Audi S8. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Follow all the rules of cleanliness, refer to CLEAN WORKING CONDITIONS .

-- Remove the front coolant pipe, refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING .

-- Remove the right and when equipped left air filter housing, refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the Throttle Valve Control Module -J338-, refer to THROTTLE VALVE CONTROL MODULE -J338-, REMOVING AND INSTALLING .

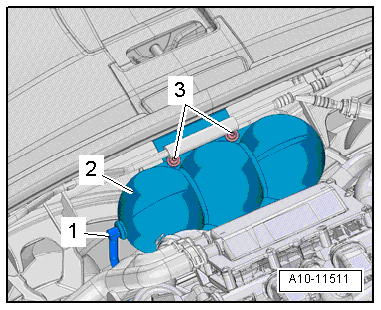

-- Disconnect the vacuum hose -1-.

-- Remove the bolts -3- and then remove the vacuum reservoir -2-.

Fig 1: Identifying Vacuum Reservoir And Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -1-.

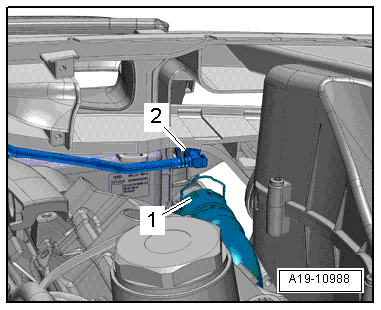

-- Loosen the clamp -2- and remove the coolant hose.

Fig 2: Identifying Coolant Hose Clamp

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore -2-.

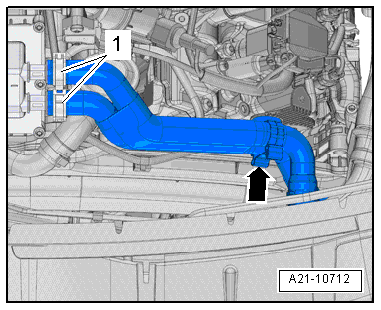

-- Disconnect the right, upper coolant hose from the radiator, to do this, lift the retaining clip -1-.

Fig 3: Identifying Retaining Clip

Courtesy of AUDI OF AMERICA, LLC

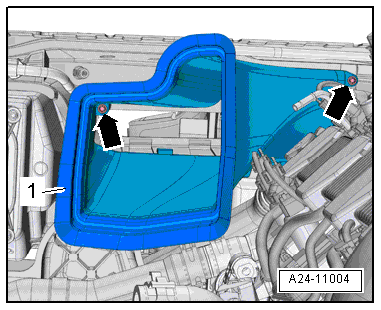

-- Remove the bolts -arrows- and then remove the air guide -1-.

Fig 4: Identifying Air Guide And Bolts

Courtesy of AUDI OF AMERICA, LLC

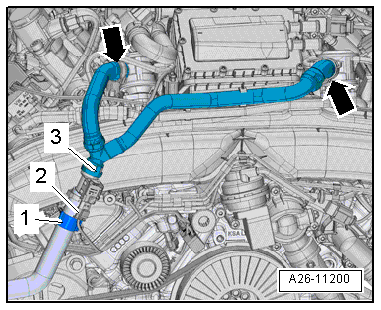

-- Press the release button -3- and loosen the hose clamps -arrows- to remove the secondary air injection hose.

-- Disconnect the connector -2-.

-- Free up the secondary air injection hose -1- and press it downward.

Fig 5: Identifying Secondary Air Injection Hose, Clamps And Connector

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -1- and free up the coolant hoses -arrow- and then remove the coolant hoses.

Fig 6: Identifying Coolant Hoses And Clamps

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -3-.

-- Free up the vacuum hoses -arrow-.

-- Loosen the hose clamps -4 and 5- and remove the air guide hoses.

-- Remove the bolts -1, 2 and 6-, pull the charge air cooler housing forward slightly out of the eyes in the eyes and remove it upward.

Fig 7: Identifying Charge Air Cooler Housing, Bolts And Hose Clamps

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of contamination from leaking engine oil.

When removing the charge air cooler housing, up to 0.5 liters of engine oil can drain from the oil separator into the area between the cylinder heads. Extract engine oil that has leaked and clean the engine.
