Overview - Entry Lamp

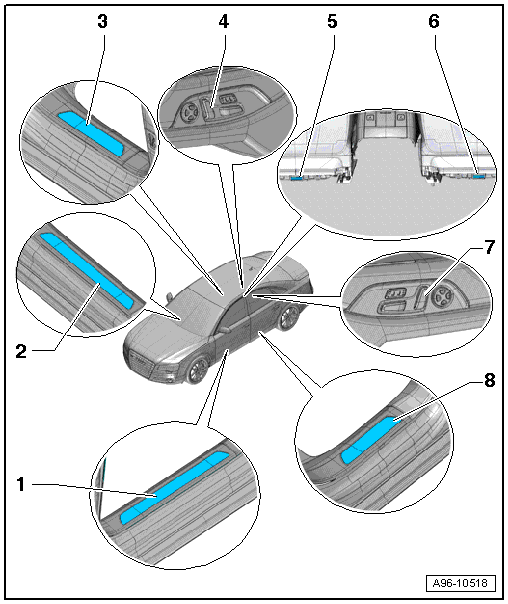

Fig 1: Overview Of Entry Lamp

Courtesy of AUDI OF AMERICA, LLC

Fiber Optic Cable for Left Front Sill Panel Ambient Lighting -W67-
- Removing and installing, refer to FIBER OPTIC CABLE FOR LEFT FRONT SILL PANEL AMBIENT LIGHTING -W67- AND FIBER OPTIC CABLE FOR RIGHT FRONT SILL PANEL AMBIENT LIGHTING -W68-, REMOVING AND INSTALLING .
Fiber Optic Cable for Right Front Sill Panel Ambient Lighting -W68-
- Removing and installing, refer to FIBER OPTIC CABLE FOR LEFT FRONT SILL PANEL AMBIENT LIGHTING -W67- AND FIBER OPTIC CABLE FOR RIGHT FRONT SILL PANEL AMBIENT LIGHTING -W68-, REMOVING AND INSTALLING .
Fiber Optic Cable for Right Rear Sill Panel Ambient Lighting -W70-
- Removing and installing, refer to FIBER OPTIC CABLE FOR THE LEFT/RIGHT REAR SILL PANELS -W69- / -W70-, REMOVING AND INSTALLING .
Right Rear Multicontour Seat Switch
Left Rear Footwell Illumination Bulb
Right Rear Footwell Illumination Bulb
Left Rear Multicontour Seat Switch
Fiber Optic Cable for Left Rear Sill Panel Ambient Lighting -W69-
- Removing and installing, refer to FIBER OPTIC CABLE FOR THE LEFT/RIGHT REAR SILL PANELS -W69- / -W70-, REMOVING AND INSTALLING .
