Overview - License Plate Lamp

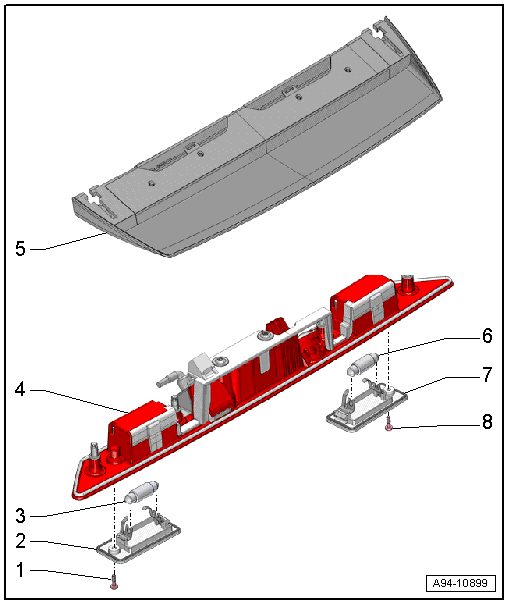

Fig 1: Overview Of License Plate Lamp

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 1 Nm
Left License Plate Lamp
- There are different versions .
- Removing and installing, refer to LICENSE PLATE LAMP, REMOVING AND INSTALLING .
License Plate Lamp -X- left
- Depending on the date of manufacture
- 12 V, 5 W
- Bulb, replacing, refer to LICENSE PLATE BULB, REMOVING AND INSTALLING .
Grip Piece
High-Mounted Brake Lamp
License Plate Lamp -X- right
- Depending on the date of manufacture
- 12 V, 5 W
- Bulb, replacing, refer to LICENSE PLATE BULB, REMOVING AND INSTALLING .
Right License Plate Lamp
- There are different versions .
- Removing and installing, refer to LICENSE PLATE LAMP, REMOVING AND INSTALLING .
Bolt
- 1 Nm
