Headlamp Housing Repair Set, Installing

NOTE:

Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is not necessary.

There are different repair kits for left and right headlamps .

Procedure

-- Remove the headlamp with the broken tabs, refer to HEADLAMP, REMOVING AND INSTALLING .

-- Remove and rest of the broken tab on the headlamp housing.

-- Place the mounting tabs -1- and -3- from the repair kit on the headlamp housing and secure them with the screws -2- and -4-.

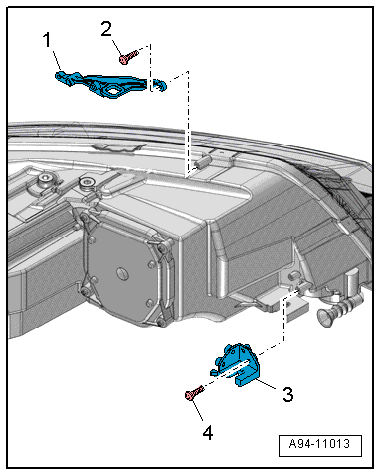

Fig 1: Identifying Headlamp Housing Repair Set

Courtesy of AUDI OF AMERICA, LLC

Tightening Specifications
