Overview - Automatic Head Lamp Range Control

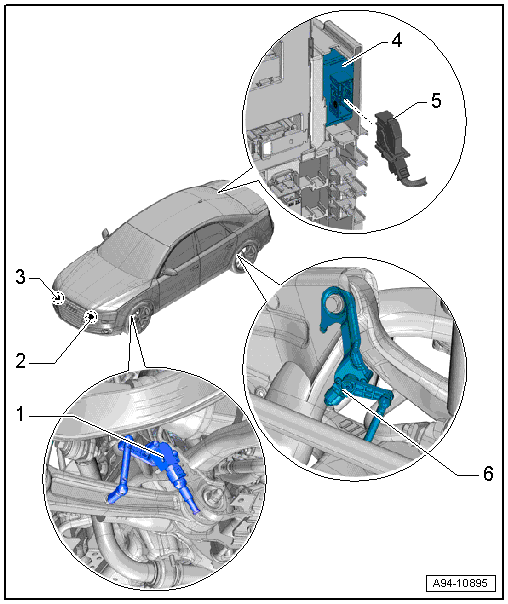

Fig 1: Overview Of Automatic Head Lamp Range Control

Courtesy of AUDI OF AMERICA, LLC

1. Front Vehicle Level Sensor
   • Component location: on the front control arm
   • Left Front Level Control System Sensor -G78-, Right Front Level Control Sensor -G289-
   • Removing and installing, refer to LEFT FRONT LEVEL CONTROL SYSTEM SENSOR -G78- /RIGHT FRONT LEVEL CONTROL SENSOR -G289-, REMOVING AND INSTALLING .
2. Left Headlamp Beam Adjustment Motor -V48-
   • Only HID headlamps
   • Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING .
3. Right Headlamp Beam Adjustment Motor -V49-
   • Only HID headlamps
   • Removing and installing, refer to LEFT/RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING .
4. Headlamp Range Control Module -J431- or Cornering Lamp and Headlamp Range Control Module -J745-
   • Various installed locations
   • Removing and installing, refer to HEADLAMP RANGE CONTROL MODULE, REMOVING AND INSTALLING .
5. Connector
6. Rear Vehicle Level Sensor
   • Component location: on the rear control arm
   • Left Rear Level Control System Sensor -G76-, Right Rear Level Control System Sensor -G77-
   • Removing and installing, refer to LEFT REAR LEVEL CONTROL SYSTEM SENSOR -G76- /RIGHT REAR LEVEL CONTROL SYSTEM SENSOR -G77-, REMOVING AND INSTALLING .
