Home >> Audi >> 2011 >> A5 2.0T >> Repair and Diagnosis >> Quick Lookups >> Wiring Diagrams >> Wiring Diagram [CADA, CAEB, CAED, CDNB, CDNC, CDZA, CFKA, CPMA, CPMB] (Cabriolet) >> Wiring Diagram(S) >> Oil Pressure Switch, Reduced Oil Pressure Switch, Mass Airflow Sensor, Fuel Tank Pressure Sensor, Fuel Tank Leak Detection Control Module, Fuel Pressure Regulator Valve >> Notes

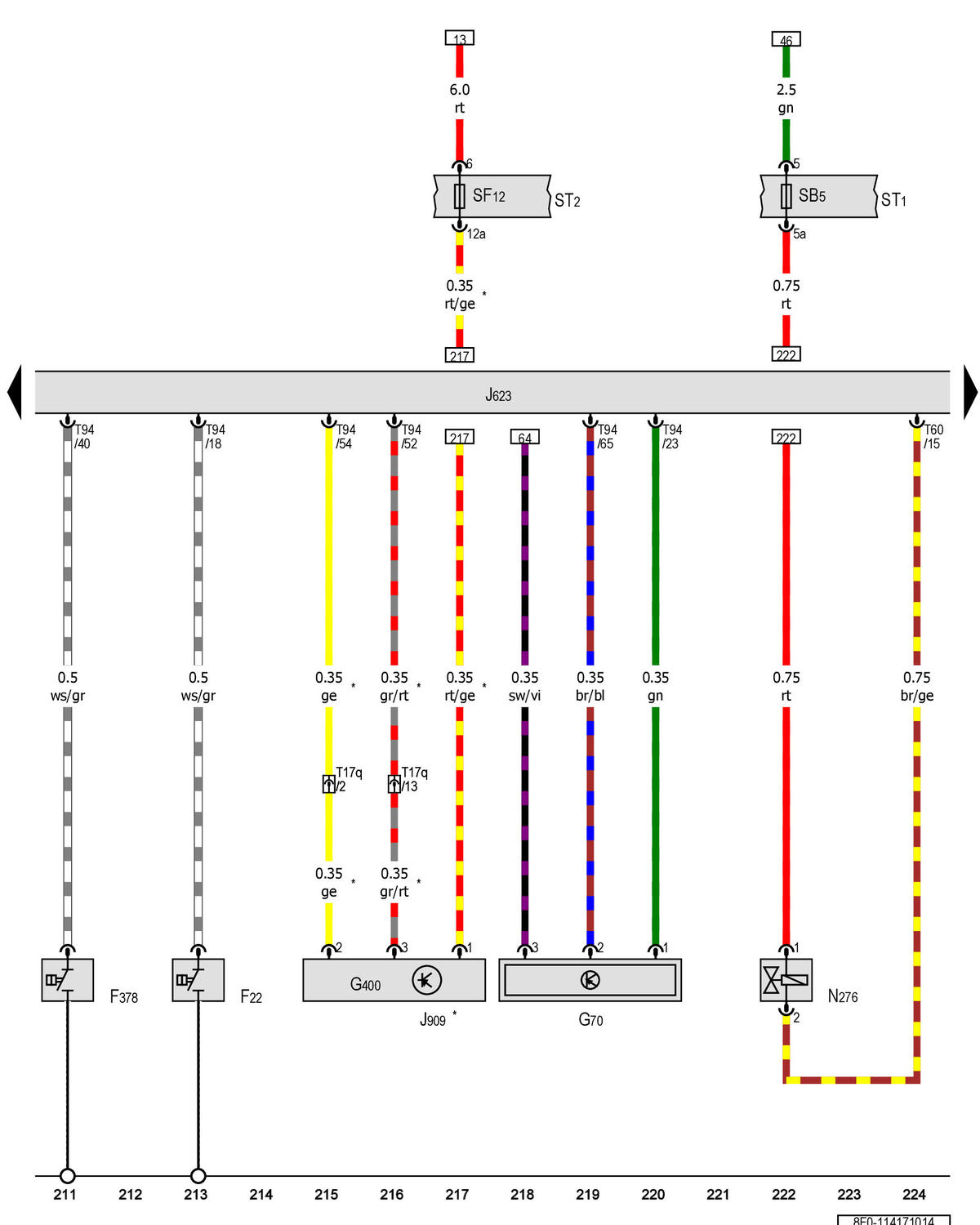

Oil Pressure Switch, Reduced Oil Pressure Switch, Mass Airflow Sensor, Fuel Tank Pressure Sensor, Fuel Tank Leak Detection Control Module, Fuel Pressure Regulator Valve: Notes

GWW8F0-114171014Courtesy of AUDI OF AMERICA, LLC
