Display And Control Head, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Check the coding and adaptation for the Climatronic Control Module -J255- A/C display and control head using the "Replace control module " function of the Guided Fault Finding (if the Climatronic Control Module -J255- A/C display and control head should be replaced) using the Vehicle Diagnostic Tester in the "Guided Fault Finding " function.

CAUTION:

To prevent damage to the Climatronic Control Module -J255- A/C display and control head and center console when removing, do not pull too hard.
Do not damage surface of center console when removing (cover it if necessary).

-- Turn off the ignition.

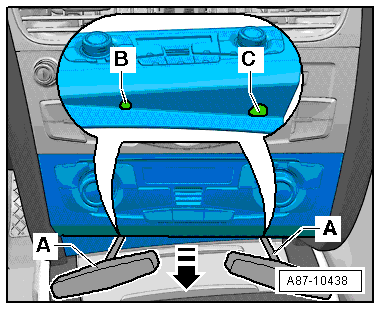

-- Attach the T-Handle Hook 3438 -A- in one of the openings -B- or -C- of the Climatronic Control Module -J255- A/C display and control head as illustrated.

Fig 1: Removing Climatronic Control Module Out Of Center Console

Courtesy of AUDI OF AMERICA, LLC

-- Carefully pull the Climatronic Control Module -J255- A/C display and control head in the direction of -arrow- out of center console.

NOTE:

The Climatronic Control Module -J255- A/C display and control head is held in the center control brackets with clamps (left and right).

Remove the connectors from the Climatronic Control Module -J255- A/C display and control head.

-- Loosen the harness connector release catch -C- for the connectors -A- and -B- by pulling the direction of the -arrow-.

Fig 2: Locating Harness Connector Release Catch For Connectors

Courtesy of AUDI OF AMERICA, LLC

-- Press the connector release catch -D- -arrow- and remove the connectors -A- and -B-.
