LEFT AND RIGHT AIR GUIDES ON Traction Battery -A2-, REMOVING AND INSTALLING: Installing
WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.
Installation is carried out in the reverse order while observing the following.
CAUTION:

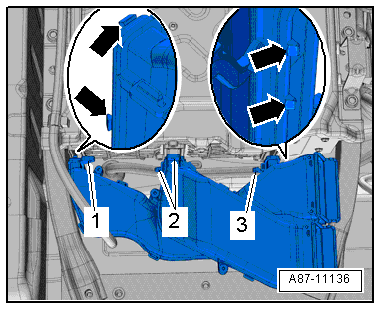

If the retainers for the air guides no longer hold, the air guides must be secured with additional bolts -1 and 3-. Remove the traction battery to do this. Refer to HIGH VOLTAGE BATTERY, REMOVING AND INSTALLING , and HIGH VOLTAGE SYSTEM GENERAL WARNINGS .
