Condensation Water Drain, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the luggage compartment floor covering. Refer to LUGGAGE COMPARTMENT FLOOR PANEL, REMOVING AND INSTALLING , also see OVERVIEW - LUGGAGE COMPARTMENT FLOOR .

-- Bring the battery cooling module in the service position. Refer to BATTERY COOLING MODULE, BRINGING INTO SERVICE POSITION .

-- Remove the nuts -2- and -3- and move the heat shield slightly to the left.

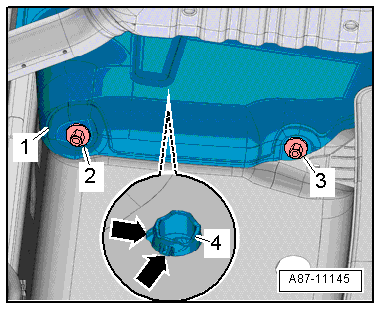

Fig 1: Unlocking Plastic Ring And Push Condensation Water Drain Into Battery Cavity

Courtesy of AUDI OF AMERICA, LLC

-- Unlock the plastic ring -arrows- and push the condensation water drain into the battery cavity.

-- Remove the condensation water drain from the bracket.
