Left Front Upper Body Vent Temperature Sensor -G385-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

-- Turn off the ignition.

-- Remove the storage compartment on driver side. Refer to DRIVER SIDE INSTRUMENT PANEL COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -A- from the temperature sensor.

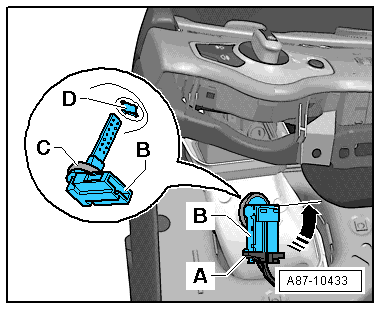

Fig 1: Disconnect Connector From Temperature Sensor

Courtesy of AUDI OF AMERICA, LLC

-- Turn the Left Front Upper Body Vent Temperature Sensor -G385- -B- 90° and remove it from the mount in the air guide channel -D-.
