Overview - Suspension Strut With Mounting Bracket, Shock Absorber Fork, Upper Control Arm And Tower Brace

WARNING: This page does not describe the selected car, but rather 13 other vehicles, including the 2017 Audi SQ5, 2017 Audi Q5, 2016 Audi SQ5, 2016 Audi Q5, and 2015 Audi SQ5. However, it is still accessible from the selected car via links, so may be relevant.

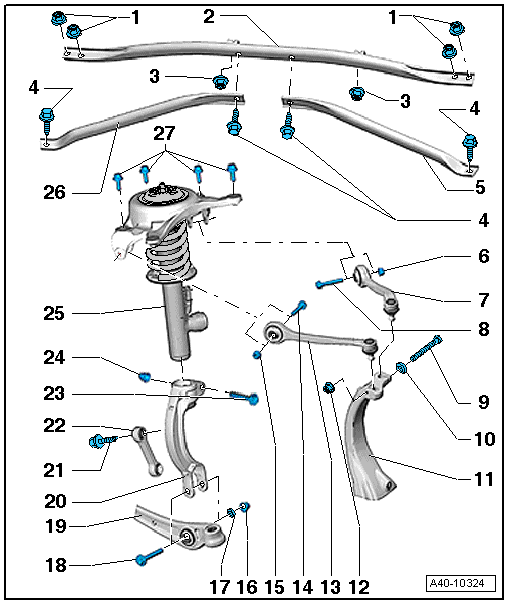

Fig 1: Identifying Suspension Strut With Bracket, Shock Absorber, Upper Control Arm And Tower Brace Assembly

Courtesy of AUDI OF AMERICA, LLC

Nut
- 20 Nm
Tower Brace
- Removing and installing, refer to TOWER BRACE, REMOVING AND INSTALLING .
Nut
- 2 Nm
Bolt
- 20 Nm
Left Additional Reinforcement
- Removing and installing, refer to TOWER BRACE, REMOVING AND INSTALLING .
Nut
- 50 Nm +90°
- Always replace if removed
- Must be tightened in the curb weight position, refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING .
- Push toward the inside of the vehicle when tightening the control arm
Upper Rear Control Arm
- Removing and installing, refer to UPPER CONTROL ARM, REMOVING AND INSTALLING .
- There is a bonded rubber bushing with a different rubber mixture installed in the top of the control arm. Installing more than one kind is not permitted. Allocation, refer to parts.
Bolt
- Always replace if removed.
Bolt
- Always replace if removed
Washer
Wheel Bearing Housing
Nut
- 40 Nm
- Always replace if removed
Upper Front Control Arm
- Removing and installing, refer to UPPER CONTROL ARM, REMOVING AND INSTALLING .
Bolt
- Always replace if removed
- There is a bonded rubber bushing with a different rubber mixture installed in the top of the control arm. Installing more than one kind is not permitted. Allocation, refer to parts.
Nut
- 50 Nm +90°
- Always replace if removed
- Must be tightened in the curb weight position, refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING .
- Push toward the inside of the vehicle when tightening the control arm
Nut
- 90 Nm +90°
- Always replace if removed
- Must be tightened in the curb weight position, refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING .
Washer
Bolt
- Always replace if removed
Control Arm
Shock Absorber Fork
- Shock Absorber Fork, Removing and Installing, refer to SHOCK ABSORBER FORK, REMOVING AND INSTALLING
Bolt
- 40 Nm +90°
- Always replace if removed
- Must be tightened in the curb weight position, refer to WHEEL BEARING IN CURB WEIGHT, LIFTING VEHICLES WITH COIL SPRING .
Coupling Rod
- Note the installed position, refer to COUPLING ROD, REMOVING AND INSTALLING .
- There are versions made of aluminum and plastic. Allocation, refer to parts .
- A mixed installation is not permitted
Bolt
- 40 Nm +180°
- Always replace if removed
Nut
- Always replace if removed
Suspension Strut
- Suspension strut with mounting bracket, removing and installing, refer to SUSPENSION STRUT WITH MOUNTING BRACKET, REMOVING AND INSTALLING .
- Suspension strut with mounting bracket, servicing, refer to SUSPENSION STRUT AND MOUNTING BRACKET, SERVICING .
- There are different versions of the suspension, refer to PRODUCTION CONTROL NUMBER (PR NUMBER) EXPLANATIONS .
- Always vent and drain faulty shock absorbers before disposal, refer to SHOCK ABSORBER, CHECKING .
- Shock Absorber, Checking, refer to SHOCK ABSORBER, CHECKING .
Right Additional Reinforcement
- Removing and installing, refer to TOWER BRACE, REMOVING AND INSTALLING .
Bolt
- 40 Nm +90°
- Note the tightening sequence, refer to INSTALLING - "Install and tighten the bolts one after the other in the sequence -1, 2, 3- and -4- ".
- Always replace if removed
