Overview - Instrument Cluster

Observe notes on contact corrosion. Refer to CONTACT CORROSION .

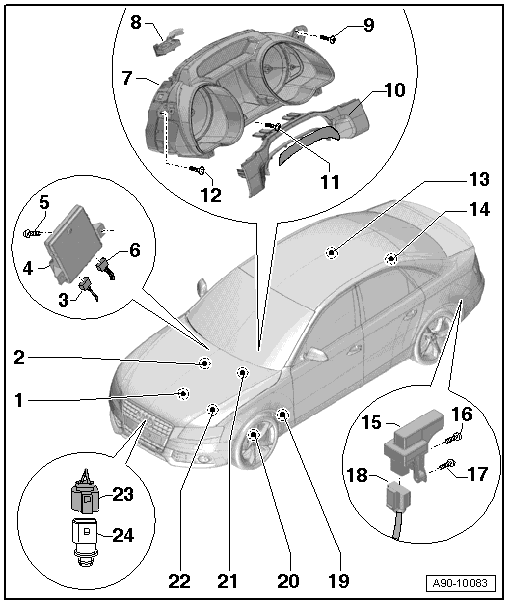

Fig 1: Instrument Cluster And Radio Frequency Controlled Clock Receiver Overview

Courtesy of AUDI OF AMERICA, LLC

1. Oil Level Thermal Sensor -G266-
   • Removing and installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
2. Oil Pressure Switch -F1-
   • Removing and installing. Refer to OIL FILTER/OIL PRESSURE SWITCH .
3. Connector
   • For Data Bus On Board Diagnostic Interface -J533-
4. Data Bus On Board Diagnostic Interface -J533-
   • Overview. Refer to OVERVIEW - DATA BUS ON BOARD DIAGNOSTIC INTERFACE .
5. Screw
   • Tightening specification: 3 Nm
6. Fiber Optic Cable Connector
   • Seal with Fiber-Optic Repair Set - Connector Protective CapsVAS6223/9
7. Instrument Cluster
   • With Instrument Cluster Control Module -J285-
   • Removing and installing. Refer to Instrument Cluster -KX2-, REMOVING AND INSTALLING .
   • Multi-pin connector pin assignment. Refer to INSTRUMENT CLUSTER MULTI-PIN CONNECTOR CONTACT ASSIGNMENT .
8. Connector
   • For instrument cluster
9. Screw
   • 2.5 Nm
10. Gap Cover
    • Removing and Installing. Refer to INSTRUMENT CLUSTER GAP COVER, REMOVING AND INSTALLING .
11. Screw
    • 2.5 Nm
12. Screw
    • 2.5 Nm
13. Fuel Level Sensor -G-
    • Connector assignment. Refer to Fuel Level Sensor -G- CONNECTOR ASSIGNMENT .
    • Removing and installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING .
14. Fuel Level Sensor 2 -G169-
    • Connector assignment. Refer to Fuel Level Sensor 2 -G169- CONNECTOR ASSIGNMENT .
    • Removing and installing. Refer to FUEL DELIVERY UNIT/FUEL LEVEL SENSOR, REMOVING AND INSTALLING
15. Radio Frequency Controlled Clock Receiver -J489-
    • Removing and installing. Refer to RADIO FREQUENCY CONTROLLED CLOCK RECEIVER, REMOVING AND INSTALLING .
16. Screw
    • 2.5 Nm
17. Screw
    • 2.5 Nm
18. Connector
    • For Radio Frequency Controlled Clock Receiver -J489-
19. Windshield Washer Fluid Level Sensor -G33-
    • Removing and installing. Refer to WINDSHIELD WASHER FLUID LEVEL SENSOR, REMOVING AND INSTALLING .
20. Brake Pad Wear Sensor
    • Left Front Brake Pad Wear Sensor -G34-
21. Brake Fluid Level Warning Switch -F34-
22. Engine Coolant Level Warning Switch -F66-
23. Connector
    • For Outside Air Temperature Sensor -G17-
24. Outside Air Temperature Sensor -G17-
    • Removing and installing:
      • Vehicles through MY 2012. Refer to Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING, THROUGH MY 2012 .
      • Vehicles from MY 2013. Refer to Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING, FROM MY 2013 .
