Oil Pan, Removing And Installing: Installing

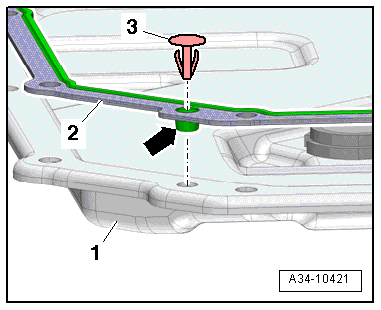

Fig 1: Identifying ATF Fluid Pan Guides & Gasket

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal. Note the following:

-- Clean the sealing surfaces.

-- Replace the ATF oil pan bolts and gasket.

-- Insert the guides -arrow- on the new gasket -2- into the ATF fluid pan -1-.

-- Attach the gasket (if equipped) and expanding rivets -3- to the ATF pan.

-- Clean the magnets -arrows- in the ATF pan.

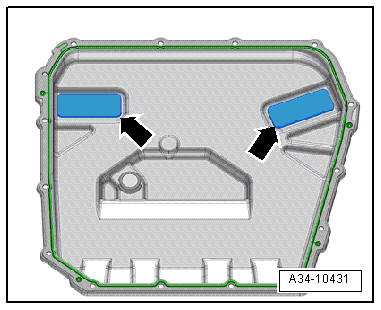

Fig 2: Locating ATF Fluid Pan Magnets

Courtesy of AUDI OF AMERICA, LLC

-- Make sure the magnets completely contact the depressions in the ATF oil pan.

-- Tighten the ATF oil pan screws. Refer to Figure.

Fig 3: ATF Oil Pan And Bolts

Courtesy of AUDI OF AMERICA, LLC

-- After installing the ATF pan, fill with ATF. Refer to ATF, DRAINING AND FILLING , and Automatic Transmission Fluid
