MECHATRONIC Circuit Board, Removing And Installing: Removing

-- Remove the DSG Transmission Mechatronic -J743-. Refer to MECHATRONIC, REMOVING AND INSTALLING .

-- Place the Mechatronic on a clean, soft surface.

CAUTION:

There is a risk of destroying the transmission control module (Mechatronic) with electrostatic discharge.

  • Always "discharge" the static electricity before working with electric connectors. Do this by touching a grounded object, for example vehicle ground, the vehicle or the hoist.
CAUTION:

Using an inappropriate tool can damage the transmission control module (Mechatronic).

  • The Mechatronic must be replaced if the locking mechanism for the connectors gets damaged while unlocking and disconnecting the connectors.
  • Use a screwdriver -a- = maximum 3.5 mm to unlock the connector.
Fig 1: Identifying Screwdriver With 3.5 MM Max Width
GWWA34-10967Courtesy of AUDI OF AMERICA, LLC

Unlocking the connector

-- Unlock the connectors -1 and 2- on the Mechatronic carefully using a screwdriver -3- in direction of -arrow A- and disconnect them in direction of -arrow B-.

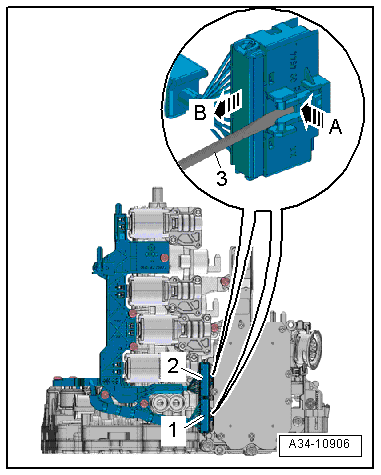

Fig 2: Unlocking Mechatronic Connectors
GWWA34-10906Courtesy of AUDI OF AMERICA, LLC

-- Loosen the screws -1, 2 and 3- on the small circuit board -A- approximately 5 mm.

-- Remove the screws -4 and 5- completely and move the wiring guide to the side.

Fig 3: Circuit Board 2 - Tightening Specification And Sequence
GWWA34-10907Courtesy of AUDI OF AMERICA, LLC
CAUTION:

There is a danger of an insufficient contact connection.

  • The contact springs on the circuit board can be connected one time only. A circuit board cannot be used again once it has been removed.

-- Pull circuit board 2 just far enough until the contact springs -2- on the circuit board are free from the contacts -1- on the valves.

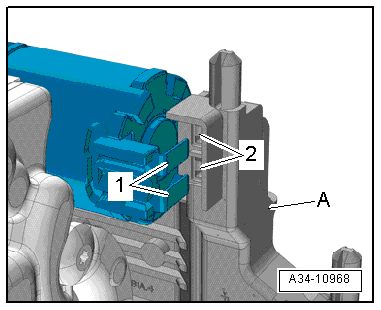

Fig 4: Identifying Circuit Board Contacts
GWWA34-10968Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -1, 2 and 3- carefully and remove circuit board 2.

-- Loosen the screws -1 through 5- on the large circuit board -B- approximately 5 mm.

Fig 5: Circuit Board 1 - Tightening Specification And Sequence
GWWA34-10969Courtesy of AUDI OF AMERICA, LLC
CAUTION:

There is a danger of an insufficient contact connection.

  • The contact springs on the circuit board can be connected one time only. A circuit board cannot be used again once it has been removed.

-- Pull circuit board 1 just far enough until the contact springs -2- on the circuit board are free from the contacts -1- on the valves.

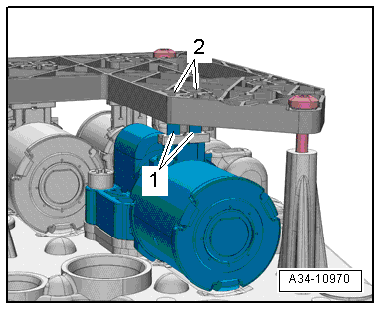

Fig 6: Locating Circuit Board 1
GWWA34-10970Courtesy of AUDI OF AMERICA, LLC

-- Remove the screws -1 through 5- completely and remove circuit board 1.

Fig 7: Circuit Board 1 - Tightening Specification And Sequence
GWWA34-10969Courtesy of AUDI OF AMERICA, LLC
