Overview - Transmission Drain And Inspection Plug For Transmission Fluid

The gear set, the manual transmission and the transfer case in the S tronic transmission 0B5 share a common transmission fluid chamber, which is checked and filled by a single plug.

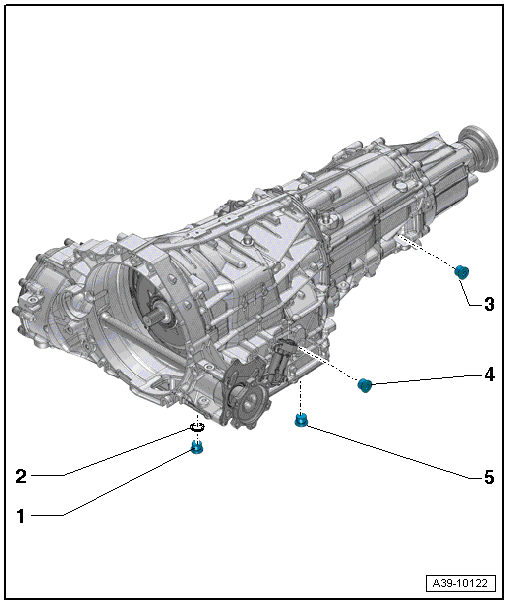

Fig 1: ATF Drain, Fill And Check Plugs Assembly Overview

Courtesy of AUDI OF AMERICA, LLC

1. ATF Drain Plug
   • Tightening specification 45 Nm
2. Seal
   • For the ATF drain plug
   • Replace
3. Transmission Fluid (MTF) Fill and Check Plug
   • Tightening specification 45 Nm
   • Inside the manual transmission, front final drive and transfer case
4. ATF Fill and Check Plug
   • Tightening specification 45 Nm
5. Transmission Fluid (MTF) Drain Plug
   • Tightening specification 45 Nm
   • Inside the manual transmission, front final drive and transfer case

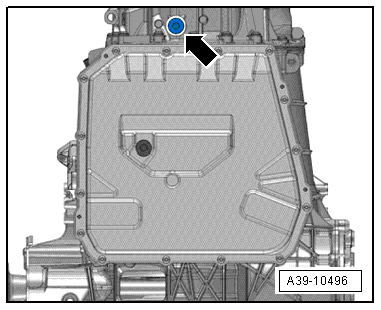

   • Depending on the date of manufacture, Transmission Fluid Temperature Sensor 2 -G754- may also serve as the transmission fluid drain plug; tightening specification for removing and installing. Refer to (See Figure and Figure).
