Overview - Rear Side Airbag

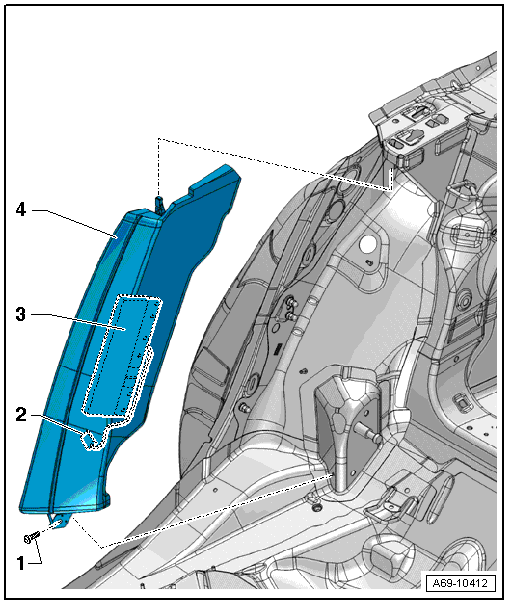

Fig 1: Overview Of Rear Side Airbag

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 9 Nm if equipped with side airbag "with" side airbag
- 3 Nm if equipped with side airbag "without any" side airbag
Connector
- for side airbag
Rear Side Airbag
- Equipment levels
- Driver side: with Driver Side Rear Thorax Airbag Igniter -N201-
- Passenger side: with Passenger Side Rear Thorax Airbag Igniter -N202-
  WARNING:
  Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
- Removing and installing. Refer to REAR SIDE AIRBAG WITH IGNITER, REMOVING AND INSTALLING .
Side Cushion
- Removing and installing. Refer to SIDE CUSHION, REMOVING AND INSTALLING .
