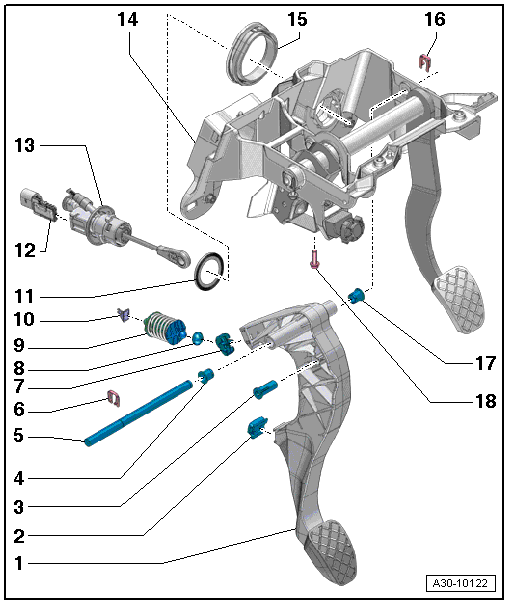

Overview - Pedal Assembly, RHD
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Risk of accident!
- The amount of brake pedal travel must not be decreased by additional floor mats.
NOTE:
Lubricate all bearing areas and contact surfaces with Lubricating Grease G 000 450 02.
Make sure that no brake fluid escapes into the footwell or into the plenum chamber or onto the transmission below. If it does, clean the area thoroughly.
- Clutch Pedal
- Clutch pedal stop
- Mounting pins
- For the clutch master cylinder
- Lubricate the bearing area
- Bearing Bushing
- Clutch pedal mounting axle
- Clip
- Bearings
- Note the different bearing position in the clutch pedal. Refer to "Over-Center Spring Installation Position" in INSTALLING THE OVER-CENTER SPRING .
- Bearing Shell
- Over-Center Spring
- black side faces toward clutch pedal
- Note the different bearing position in the clutch pedal. Refer to Fig 2.
- Removing and installing using the Over-Center Spring Assembly Clamp T40025
- Bearing Shell
- Seal
- Replacing
- Clutch Position Sensor -G476-
- Integrated Clutch Pedal Switch -F36- and Clutch Pedal Starter Interlock Switch -F194-
- Can only be replaced together with the clutch master cylinder, refer to -item 13-
- Clutch Master Cylinder
- Lubricating the bearing lug for the pressure rod
- Bracket
- with the brake pedal
- Seal
- Clip
- Bearing Bushing
- Bolt
- Quantity: 2
- 8 Nm

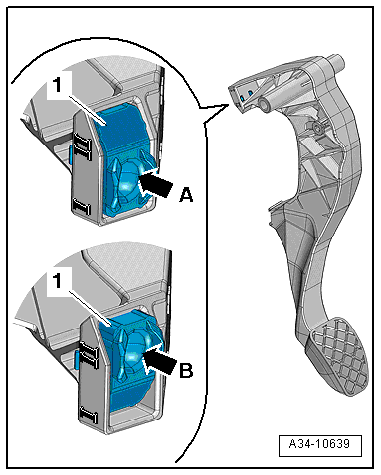

-- Install the bearing -1- into the clutch pedal.
| Bearing position | Vehicles with: |
|---|---|
|
|
|
|
-- Insert the over-center spring using the Over-Center Spring Assembly Clamp T40025.
- The white side of the over-center spring faces the bearing -1-.
