Overview - Charge Air System

WARNING: This page is about a different car, the 2018 Audi A6 Quattro, 2017 Audi A6 Quattro, and 2016 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

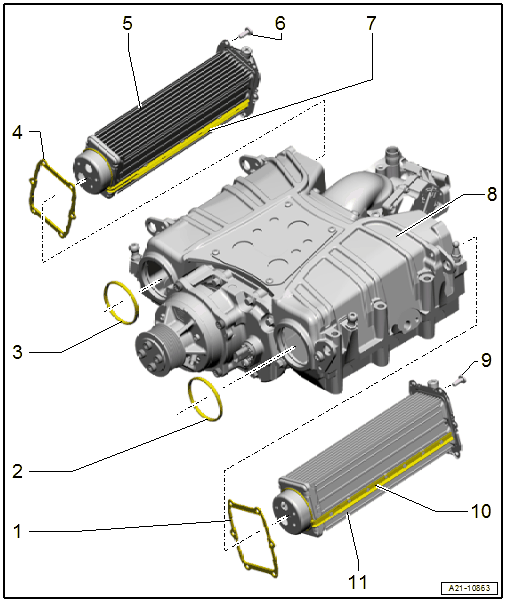

Fig 1: Charge Air System Exploded View

Courtesy of AUDI OF AMERICA, LLC

Seal
- Replace after removing
O-ring
- Replace after removing
- Coat with engine oil when installing the charge air cooler
O-ring
- Replace after removing
- Coat with engine oil when installing the charge air cooler
Seal
- Replace after removing
Right Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
Bolt
- 10 Nm
- Replace after removing
- Self-locking
Seal
- Not available individually
- May not be removed from the charge air cooler
- Coat with engine oil when installing the charge air cooler
Supercharger Housing
Bolt
- 10 Nm
- Replace after removing
- Self-locking
Seal
- Not available individually
- May not be removed from the charge air cooler
- Coat with engine oil when installing the charge air cooler
Left Charge Air Cooler
- Removing and installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING .
