Seat Height Adjuster, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Move the front seat to the highest possible position. This reduces the spring force when removing and installing the seat height adjuster.

-- Move the front seat all the way forward and raise it as high as possible. Then lower it one stroke.

WARNING:

Follow all Safety Precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
Before handling pyrotechnic components (for example, disconnecting the connector), the person handling it must "discharge static electricity". This can be done by touching the door striker, for example.

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Fasten the front seat on the :VAS6136 . Refer to FRONT SEAT, MOUNTING ON FIXTURE FOR SEAT REPAIR .

-- Remove the trim on the sill side. Refer to SEAT SIDE TRIM ON SILL PANEL SIDE, REMOVING AND INSTALLING, FRONT SEAT (MANUAL) .

Courtesy of AUDI OF AMERICA, LLC

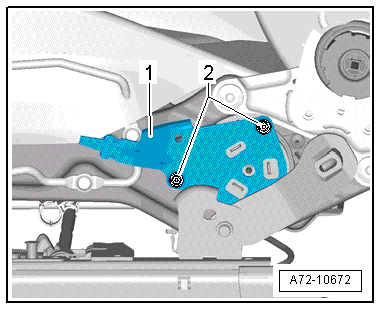

-- Remove the bolts -2-.

-- Remove the lever -1- from the seat height adjuster.

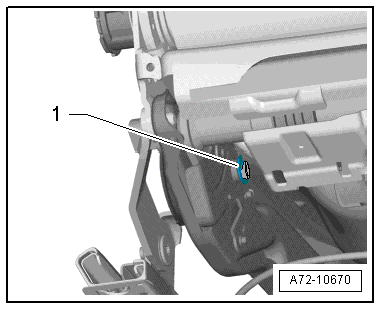

-- Remove the locking washer -1- with a screwdriver.

Courtesy of AUDI OF AMERICA, LLC

NOTE:

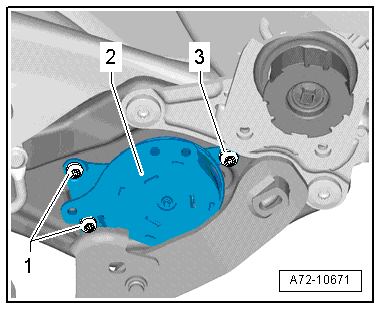

The bolts -1- and the bolt -3- are different lengths.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 and 3-.

-- Remove the seat height adjuster -2- from the seat frame.
