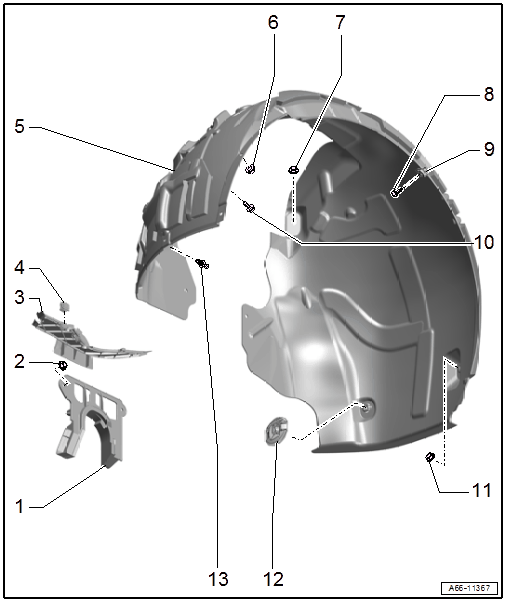

Overview - Wheel Housing Liner
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Driveshaft Cover
- Removing and Installing. Refer to DRIVE AXLE COVER, REMOVING AND INSTALLING .
- Nut
- 2 Nm
- Quantity: 2
- Longitudinal Member Cover
- There are different versions. Refer to the Parts parts information.
- Removing and Installing. Refer to COVER, REMOVING AND INSTALLING, LONGITUDINAL MEMBER .
- Clip
- Front Wheel Housing Liner
- There are different versions. Refer to the Parts parts information.
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Nut
- 2 Nm
- Nut
- 2 Nm
- Bolt
- 2.1 Nm
- Bolt
- 2.1 Nm
- Quantity: 5
- Bracket
- For the wheel housing liner to the fender
- Nut
- 2 Nm
- For vehicles from MY 2015
- Clip/Nut
- Nut: 2 Nm
- Quantity: 2
- Expanding Rivet
- Quantity: 2
