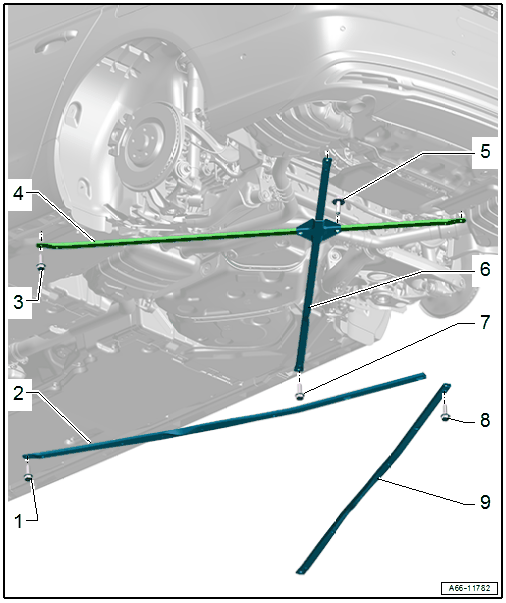

Overview - Underbody Bracing
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 50 Nm +90°
- Replace after removing.
- Left Diagonal Brace
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING, AVANT .
- Bolt
- 50 Nm +90°
- Replace after removing.
- Upper Diagonal Brace
- e-tron only
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING, E-TRON .
- Bolt
- 18 Nm
- Quantity: 2
- Lower Diagonal Brace
- e-tron only
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING, E-TRON .
- Bolt
- 50 Nm +90°
- Replace after removing.
- Bolt
- 50 Nm +90°
- Replace after removing.
- Right Diagonal Brace
- Removing and Installing. Refer to DIAGONAL BRACES, REMOVING AND INSTALLING, AVANT .
