Overview - Side Sill Trim, ALLROAD

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2018 Audi S6, 2018 Audi A6 Quattro, 2018 Audi A6, 2017 Audi S6, and 2017 Audi A6 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

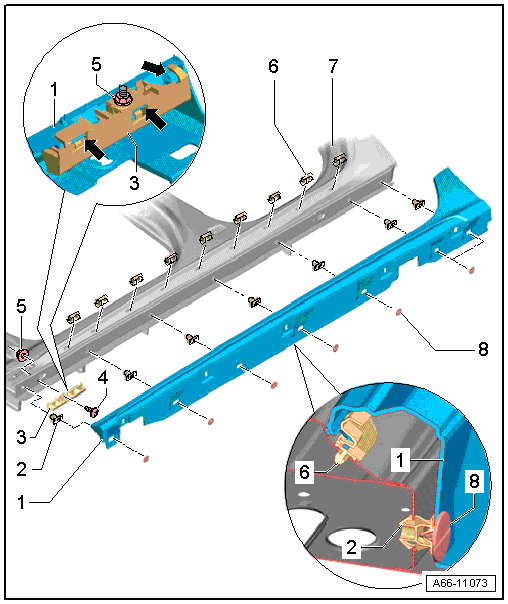

Fig 1: Side Sill Trim, Allroad Exploded View

Courtesy of AUDI OF AMERICA, LLC

Side Sill Trim Panel
- Removing
  -- Turn the twist locks 90° and remove.

  -- Pull the side sill trim panel at the bottom of the A-pillar out of the bracket.

  -- Warm the side sill trim panel at the C-pillar with a hot air gun and carefully loosen the two-sided tape.

  -- Unclip the side sill trim panel one clip after the other and remove it.
- Installing
  -- Remove the chafe protection and the two-sided tape when installing, if necessary.

  -- Clean the area where the two-sided tape is going to be used with Cleaning Solution :D 009 401 04 .

  -- Position the rear side sill trim panel using the centering pin and then push it into the bracket.

  -- Push the side sill trim panel into the side sill clips -6- starting from the rear and working forward.

  -- Install the twist locks -8-.

  -- Press the adhesive surface for the two-sided tape using the Roller :3356 .
Clip
-- Install in the side sill.
Bracket
Fitting Bolt
- 8 Nm
Nut
Clip
-- Replace any clips that get damaged while removing.

-- Install on the side sill trim panel as illustrated.
Side Sill
Twist Lock
-- Turn 90° and remove.

-- Press in to install.
