Removal And Installation

WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.

1.

Remove the Front Controls Interface Module (FCIM). Refer to Front Controls Interface Module (FCIM) .

2.

Remove the defroster grille panel.

Courtesy of FORD MOTOR COMPANY

3.

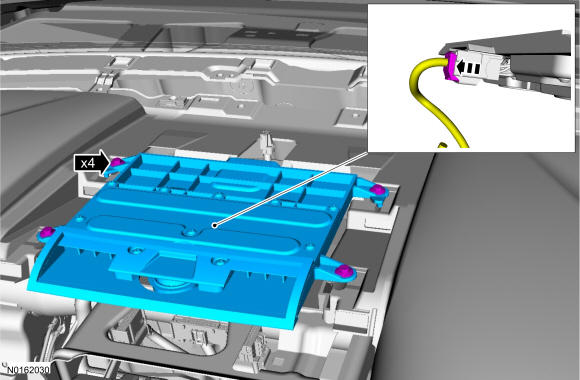

Remove the 4 screws and the instrument panel speaker cover.
- Disconnect the electrical connector.
- To install, tighten to 2.5 Nm (23 lb-in).

Courtesy of FORD MOTOR COMPANY

4.

Remove the 4 screws and the instrument panel speaker.
- Disconnect the electrical connector.
- To install, tighten to 2.5 Nm (23 lb-in).

Courtesy of FORD MOTOR COMPANY

5.

To install, reverse the removal procedure.
