Removal And Installation
WARNING: This page is about a different car, the 2017 Lincoln Navigator and 2017 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Expedition shown, Navigator similar.
- 1.
Remove the floor console rear cup holders.
 Courtesy of FORD MOTOR COMPANY
|
- 2.
Remove the retainers, disconnect the electrical connectors and remove the floor console rear trim panel.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

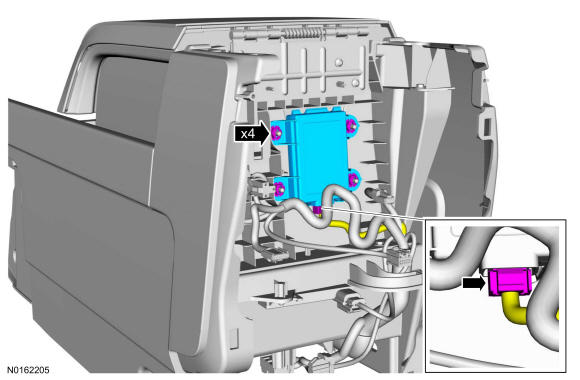

Disconnect the electrical connector, remove the retainers and the backup transceiver.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
To install, reverse the removal procedure.
