Removal And Installation
WARNING: This page is about a different car, the 2016 Ford Expedition. However, it is still accessible from the selected car via links, so may be relevant.
- 1.

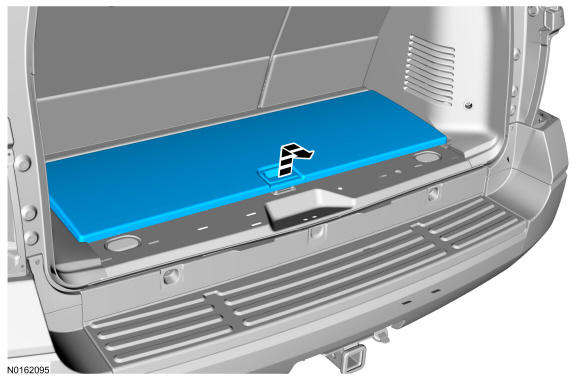

Remove the load floor panel.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

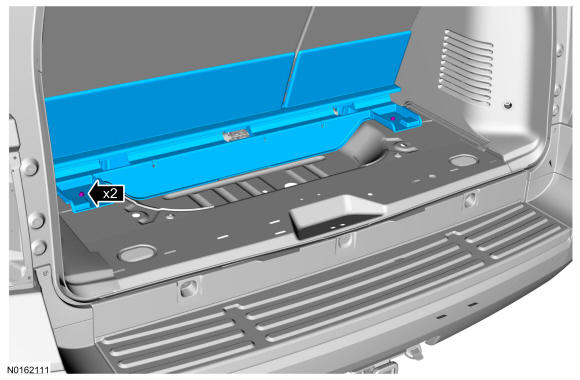

Remove the bolts and the mid-floor panel support.
 Courtesy of FORD MOTOR COMPANY
|
- 3.
- 1.

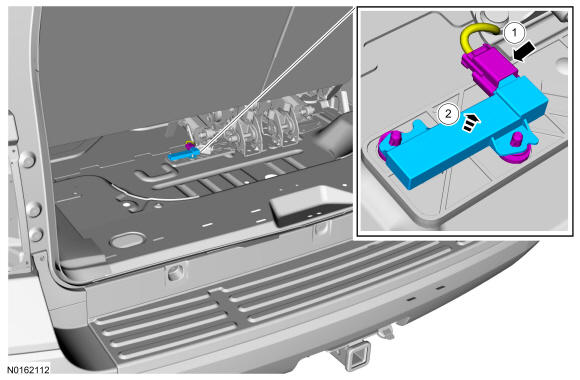

Disconnect the PATS antenna electrical connector.
- 2.
Release the clips and remove the PATS rear antenna.
 Courtesy of FORD MOTOR COMPANY
|
- 4.
To install, reverse the removal procedure.
