Belt Pulley Side Sealing Flange Cover, Removing And Installing: Removing

WARNING: This page is about a different car, the 2016 Audi Q5, 2015 Audi Q5, and 2014 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

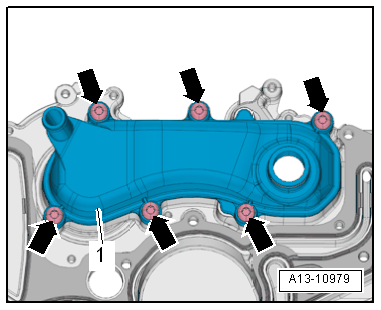

Fig 1: Removing Cover -1-, Back Side Of Belt Pulley Side Sealing Flange
GWWA13-10979Courtesy of AUDI OF AMERICA, LLC

-- Remove the belt pulley side sealing flange, refer to SEALING FLANGE, BELT PULLEY SIDE, REMOVING AND INSTALLING .

-- Remove the bolts -arrows- and remove the cover -1-.
