Overview - Cylinder Block, Transmission Side

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

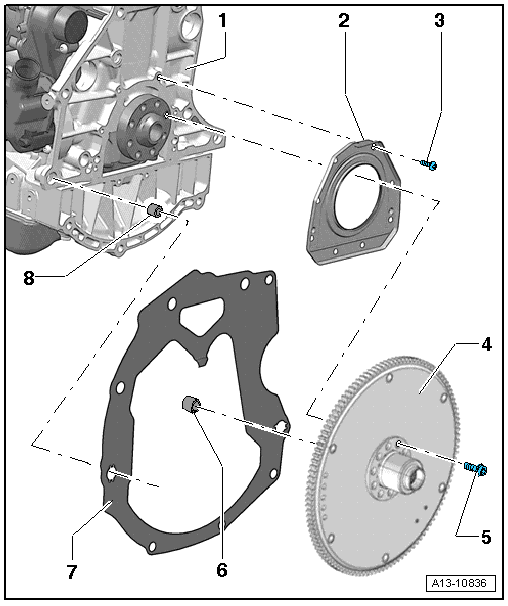

Fig 1: Identifying Sealing Flange And Drive Plate Overview

Courtesy of AUDI OF AMERICA, LLC

Cylinder Block
Sealing Flange with Seal
- Replacing
- Removing and installing, refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .
- Do not oil or grease the sealing lip of seal
- Before installing, remove oil remains from crankshaft journal with a clean cloth
Bolt
- Tightening sequence with 8 bolts, refer to Fig 2
- Tightening sequence with 6 bolts, refer to Fig 3
Drive Plate
- Removing and installing, refer to DRIVE PLATE, REMOVING AND INSTALLING .
Bolt
- 60 Nm +90° turn
- Replacing
Needle Bearing
- For removing and installing the needle bearing, refer to NEEDLE BEARING IN DRIVE PLATE, REPLACING .
Intermediate Plate
- Must be located on dowel sleeves
- Be careful not to damage or bend when installing
- Is hooked in at sealing flange, refer to Fig 4
Alignment Sleeve

Fig 2: Identifying Sealing Flange Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the bolts -1 through 8- in the sequence shown:

-- 1. Hand-tighten the bolts.

-- 2. Tighten the bolts to 9 Nm.

Fig 3: Identifying Transmission Side Sealing Flange Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Tighten the new bolts -1 through 6- in the sequence shown:

-- 1. Hand-tighten the bolts.

-- 2. Tighten the bolts to 4 Nm + 45° turn.

NOTE:

Only six bolts are installed, two bolt openings remain open.

Fig 4: Identifying Intermediate Plate Alignment Bushings

Courtesy of AUDI OF AMERICA, LLC

-- Hook in intermediate plate at sealing flange and push it onto the alignment sleeves -arrows-.
