Auxiliary Components Bracket, Removing And Installing, Non-Hybrid Vehicles With All Engine Codes Except CDZA: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2017 Audi Q5, 2016 Audi Q5, 2015 Audi Q5, 2014 Audi Q5, and 2013 Audi Q5. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Release Ribbed Belt Tension, Rotate Tensioner In Direction Arrow

Courtesy of AUDI OF AMERICA, LLC

-- Drain the coolant, refer to COOLANT, DRAINING AND FILLING, NON-HYBRID VEHICLES .

CAUTION:

Risk of damage due to reversed running direction on a used ribbed belt.

Before removing ribbed belt, marking running direction with chalk or felt-tip pen for reinstallation later.

-- To release ribbed belt tension, rotate tensioner in direction of -arrow-.

-- Secure the tensioner with the Belt Tensioner Locking Tool T40098.

-- Remove the ribbed belt.

-- Remove the bolt -1- and remove the ribbed belt tensioner from the accessory assembly bracket.

NOTE:

Place a cloth under the accessory assembly bracket to collect leaking engine oil.

-- Disconnect the connectors -1 and 4- from the Oil Pressure Switch -F22- and Reduced Oil Pressure Switch -F378-.

Fig 2: Identifying Oil Pressure Switch

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamps -arrows- and remove the air guide hose.

Fig 3: Identifying Air Intake Hose Components

Courtesy of AUDI OF AMERICA, LLC

-- Remove the generator, refer to GENERATOR, REMOVING AND INSTALLING .

-- Disconnect solenoid clutch electrical connector -1- on Air Conditioning (A/C) compressor.

Fig 4: A/C Compressor Bolts And Solenoid Clutch Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

WARNING:

Refrigerant can cause serious personal injury.

Do not open the A/C system refrigerant circuit.

-- Remove A/C compressor bolts -arrows-.

CAUTION:

Risk of damaging refrigerant lines and hoses.

Do not stretch, kink or bend refrigerant lines and hoses.

-- Tie up the A/C compressor with the refrigerant lines attached to the longitudinal member.

-- Disconnect the connector -2-.

Fig 5: Identifying After-Run Coolant Pump Electrical Connector

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and move the After-Run Coolant Pump -V51- to the side.

NOTE:

Disregard the -arrows-.

NOTE:

The power steering pump hydraulic lines remain connected.

Fig 6: Identifying Power Steering Pump

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1- from the front through the belt pulley and then remove the bolt -2- from the back.

NOTE:

The power steering pump is shown in the illustration without the belt pulley and without the hydraulic lines.

-- Remove the power steering pump with the hydraulic lines connected on the longitudinal member.

-- Remove the oil filter, refer to 4-CYLINDER 2.0 TFSI GASOLINE ENGINE .

-- Remove the bolt -top arrow- from the oil dipstick tube.

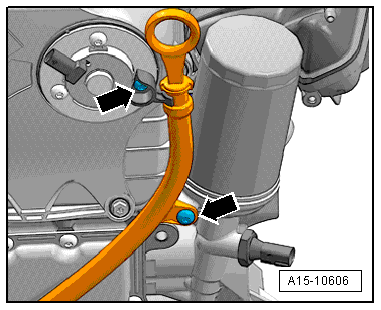

Fig 7: Identifying Oil Dipstick Guide Tube And Bolts

Courtesy of AUDI OF AMERICA, LLC

NOTE:

Ignore bottom -arrow-.

-- Remove the bolt -arrow- for the oil dipstick guide tube.

Fig 8: Accessory Assembly Bracket Bolt Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1 through 5- and pull off the accessory assembly bracket from the coolant pump housing.
