New Connecting Rod, Separating
WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2016 Audi A4 Quattro, 2016 Audi A4, 2015 Audi A4 Quattro, 2014 Audi A4 Quattro, and 2013 Audi A4. However, it is still accessible from the selected car via links, so may be relevant.
New connecting rods might not be completely separated at the predetermined breaking point. If the connecting rod bearing cap cannot be removed by hand, proceed as follows:
- Mark the cylinder where the connecting rod is allocated to -item 4-. See Figure.

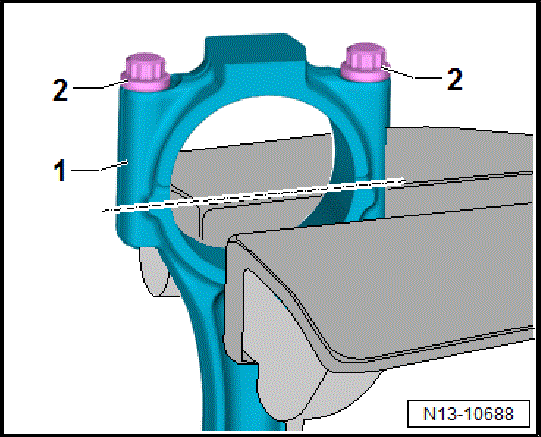

- Lightly clamp the connecting rod -1- in a vise equipped with aluminum protective pads.
- Clamp the connecting rod lightly to prevent damaging it.
- Clamp the connecting rod below the dotted line.
- Loosen both bolts -2- approximately five turns.
